In this lab, we will talk about the following:
1. The confidendence intervals for parameters.
2. Confidence intervals for mean of response when predictor \(X\) is equal to specific value \(X_h\), the prediction interval for a new observation when \(X=X_h\).
3. Plots of pointwise confidence/prediciton intervals.
4. Add the predicted response on the graph for new data.
5. Descriptive measures considering the linear association.

1. Confidence Intervals for Parameters

data0120=read.table("http://www.stat.ufl.edu/~rrandles/sta4210/Rclassnotes/data/textdatasets/KutnerData/Chapter%20%201%20Data%20Sets/CH01PR20.txt")
colnames(data0120)=c("minutes","number")
fit=lm(minutes~number,data=data0120)
confint(fit,,0.95)
                2.5 %    97.5 %
(Intercept) -6.234843  5.074529
number      14.061010 16.009486
confint(fit,1,.95)
                2.5 %   97.5 %
(Intercept) -6.234843 5.074529
confint(fit,2,.95)
          2.5 %   97.5 %
number 14.06101 16.00949
confint(fit,"(Intercept)",.95)
                2.5 %   97.5 %
(Intercept) -6.234843 5.074529
confint(fit,"number",.95)
          2.5 %   97.5 %
number 14.06101 16.00949

2. Confidence Intervals or Prediction Intervals When \(X=X_h\)

2.a. Confidence Intervals for Mean of Response When \(X=X_h\).

Get a 95% confidence interval for the mean minutes took if the number of copiers serviced=15 and 12.

new=data.frame(number=c(15,12))
new
  number
1     15
2     12
predict(fit,new,interval="confidence",level = 0.95)
       fit      lwr      upr
1 224.9486 214.9487 234.9484
2 179.8428 172.6162 187.0694

2.b. Prediction Interval for a New Observation When \(X=X_h\).

Get a 95% prediction interval for the service time in minutes of a service call with 15 or 12 copiers serviced.

predict(fit,new,interval="prediction",level=0.95)
       fit      lwr      upr
1 224.9486 204.3785 245.5186
2 179.8428 160.4688 199.2169

2.c. Look at One Issue of Using Predict Function

ofit=lm(circumference~age,data=Orange)
predict(ofit,data.frame(age=600),interval="confidence",level=0.95)#by default is 95%
       fit      lwr      upr
1 81.46185 71.66058 91.26311
ofit2<-lm(Orange$circumference~Orange$age)
predict(ofit2,data.frame(age=600),interval="confidence",level=0.95)
Warning: 'newdata' had 1 row but variables found have 35 rows
         fit       lwr       upr
1   29.99855  14.18732  45.80978
2   69.07649  58.07322  80.07976
3   88.29515  79.04667  97.54362
4  124.59706 116.31822 132.87590
5  148.83392 139.15468 158.51317
6  163.88854 152.75204 175.02503
7  186.31030 172.52264 200.09797
8   29.99855  14.18732  45.80978
9   69.07649  58.07322  80.07976
10  88.29515  79.04667  97.54362
11 124.59706 116.31822 132.87590
12 148.83392 139.15468 158.51317
13 163.88854 152.75204 175.02503
14 186.31030 172.52264 200.09797
15  29.99855  14.18732  45.80978
16  69.07649  58.07322  80.07976
17  88.29515  79.04667  97.54362
18 124.59706 116.31822 132.87590
19 148.83392 139.15468 158.51317
20 163.88854 152.75204 175.02503
21 186.31030 172.52264 200.09797
22  29.99855  14.18732  45.80978
23  69.07649  58.07322  80.07976
24  88.29515  79.04667  97.54362
25 124.59706 116.31822 132.87590
26 148.83392 139.15468 158.51317
27 163.88854 152.75204 175.02503
28 186.31030 172.52264 200.09797
29  29.99855  14.18732  45.80978
30  69.07649  58.07322  80.07976
31  88.29515  79.04667  97.54362
32 124.59706 116.31822 132.87590
33 148.83392 139.15468 158.51317
34 163.88854 152.75204 175.02503
35 186.31030 172.52264 200.09797

The second code gives very strange output. We want one confidence interval, but it gives us many. This is an issue about using different names when referring to different predictor variables. Look at the following ofit3 to understand how to make a correct fit better.

a=Orange$circumference
x=Orange$age
#here you use x as a name
ofit3=lm(a ~ x)
#here you use x again as a name in newdata.
predict(ofit3, data.frame(x=600), interval = "confidence",level=0.95)
       fit      lwr      upr
1 81.46185 71.66058 91.26311

2.d. We can also let \(X_h\) equal to more complex values.

predict(ofit,data.frame(age=mean(Orange$age)), interval="confidence",level=0.95)
       fit      lwr      upr
1 115.8571 107.6939 124.0204

3. Plots of Pointwise Confidence/Prediciton Intervals

Traditional R plot

conf.band <- predict(fit, interval="confidence")
pred.band <- predict(fit, interval="prediction")
Warning in predict.lm(fit, interval = "prediction"): predictions on current data refer to _future_ responses
class(conf.band)
[1] "matrix"
plot(minutes~number,data=data0120)
abline(fit)
lines(data0120$number, conf.band[,2])
lines(data0120$number, conf.band[,3])

R used line to connect points, but they overlap with each other. How to fix? We need to sort the data first, then connect them.

plot(minutes~number,data=data0120)
abline(fit)
lines(sort(data0120$number), sort(conf.band[,2]),col="red",lty=3)
lines(sort(data0120$number), sort(conf.band[,3]),col="red",lty=3)

Add the prediction band to it. Use a different color.

plot(minutes~number,data=data0120)
abline(fit)
lines(sort(data0120$number), sort(conf.band[,2]),col="red",lty=2)

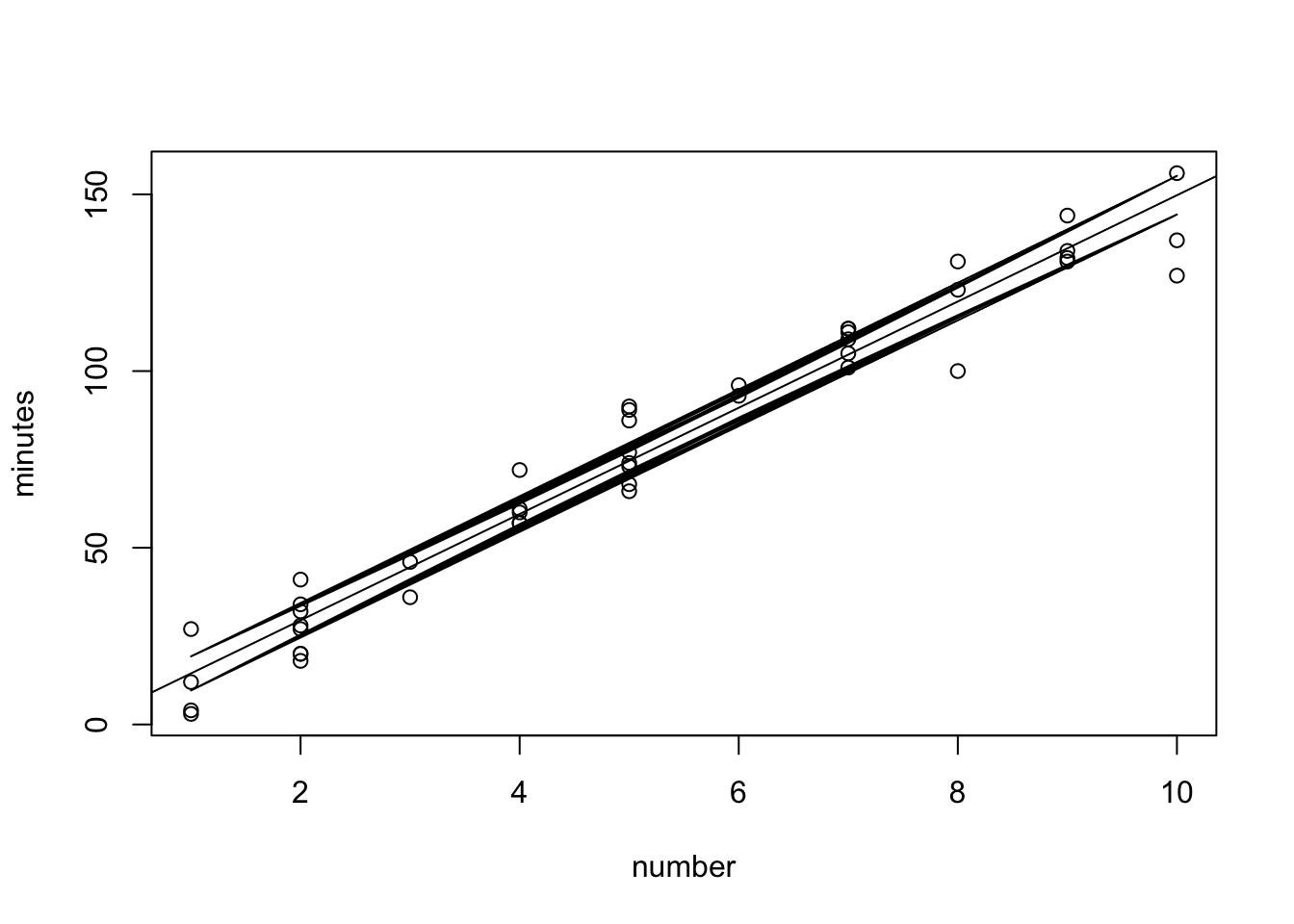

lines(sort(data0120$number), sort(conf.band[,3]),col="red",lty=2)
lines(sort(data0120$number), sort(pred.band[,2]),col="blue",lty=3)
lines(sort(data0120$number), sort(pred.band[,3]),col="blue",lty=3)

Use ggplot2

We can do the same thing in ggplot. First a plot of the data with the linear model (lm) with confidence band.

library(ggplot2)
ggplot(data0120) +
  geom_point(aes(x=number, y=minutes)) +

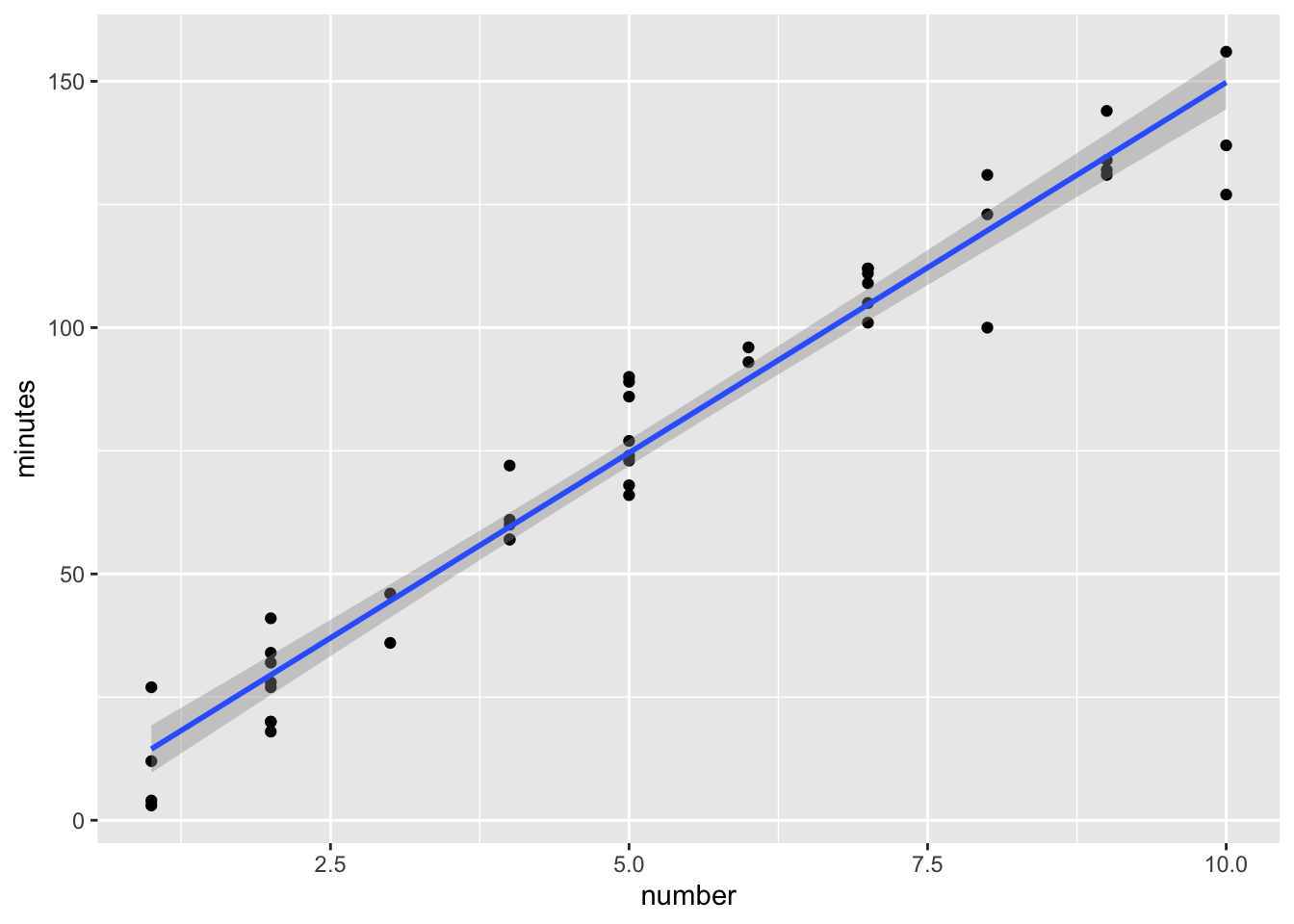

  geom_smooth(method=lm, se=TRUE, aes(x=number, y=minutes))

To add the prediction bands we need to add something to the data. Column bind the output from the predict function to the dataset we are send into the ggplot function. Then we’ll simply draw some extra lines

ggplot(cbind(data0120, pred.band) ) +
  geom_point(aes(x=number, y=minutes)) +
  geom_smooth(method=lm, se=TRUE, aes(x=number, y=minutes))+
  geom_line(aes(x=number, y=lwr), col="red", linetype="dashed") +

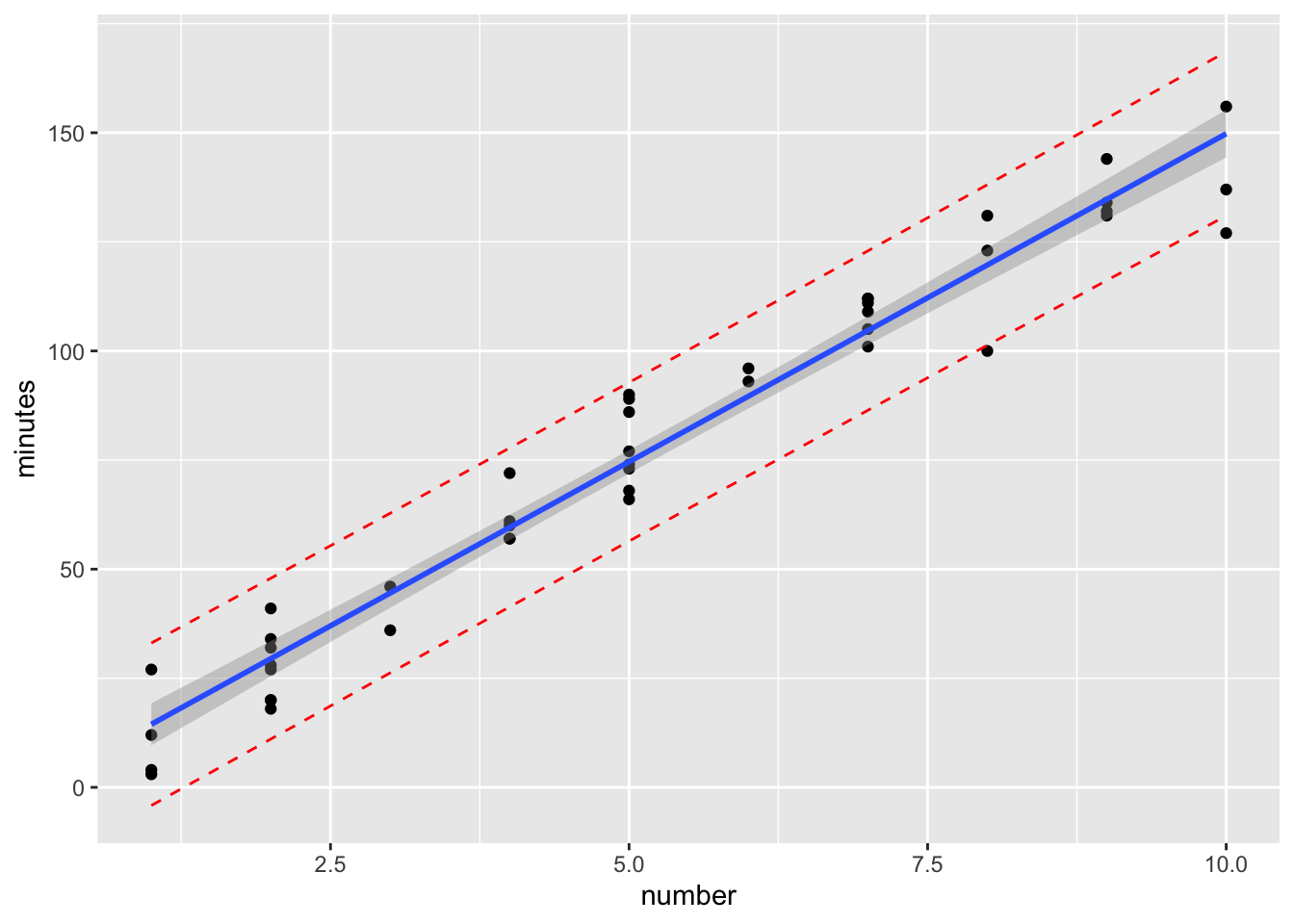

  geom_line(aes(x=number, y=upr), col="red", linetype="dashed")

4. Add the Predicted Response on the Graph for New Data

We will predict the response value for some new predict variable values. We will also calculate the prediction interval to demonstrate the behavior far from our dataset. We will also demonstrate a limitation of base R graphics in the process.

First prepare the new data and calculate the predicted value using this new data.

new.number<- data.frame(number=c(0, 1.0, 4, 7,12))
new.pred <- predict(fit, newdata=new.number, interval="prediction")
new.number.pred <- cbind(new.number, new.pred)
new.number.pred
  number         fit        lwr       upr
1      0  -0.5801567 -19.424385  18.26407
2      1  14.4550914  -4.155437  33.06562
3      4  59.5608355  41.354191  77.76748
4      7 104.6665796  86.399216 122.93394
5     12 179.8428198 160.468784 199.21686

Traditional R plot

plot(minutes~number,data=data0120)
abline(fit)
points(new.number.pred$number, new.number.pred$fit, col="red", pch=8)

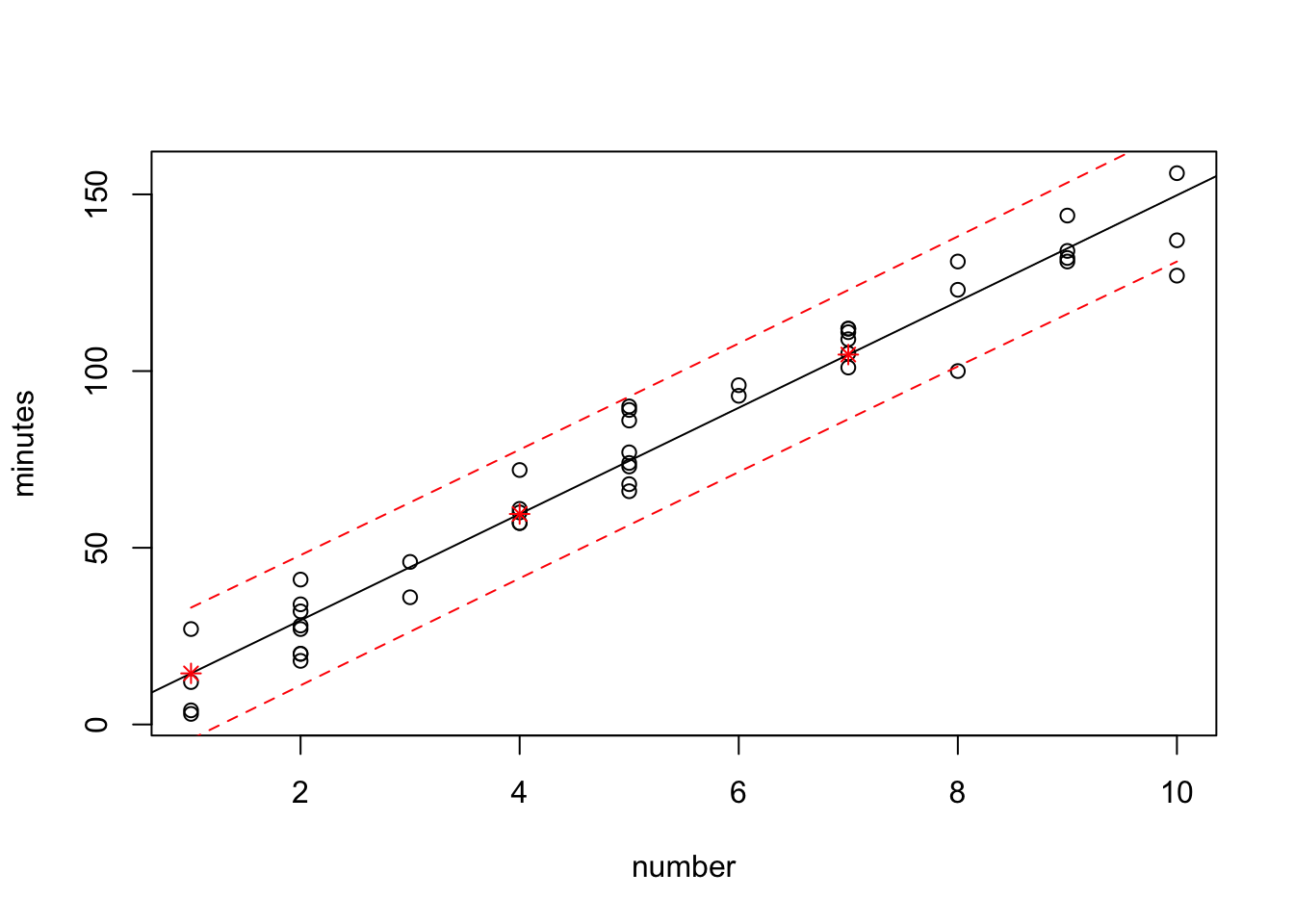

lines(sort(data0120$number), sort(pred.band[,2]),col="red",lty=2)
lines(sort(data0120$number), sort(pred.band[,3]),col="red",lty=2)

The above does not show all the information. Need to edit the plot function.

plot(minutes~number,data=data0120,xlim=c(-2,12.5),ylim=c(-5,260))
abline(fit)
points(new.number.pred$number, new.number.pred$fit, col="red", pch=8)
lines(sort(data0120$number), sort(pred.band[,2]),col="red",lty=2)

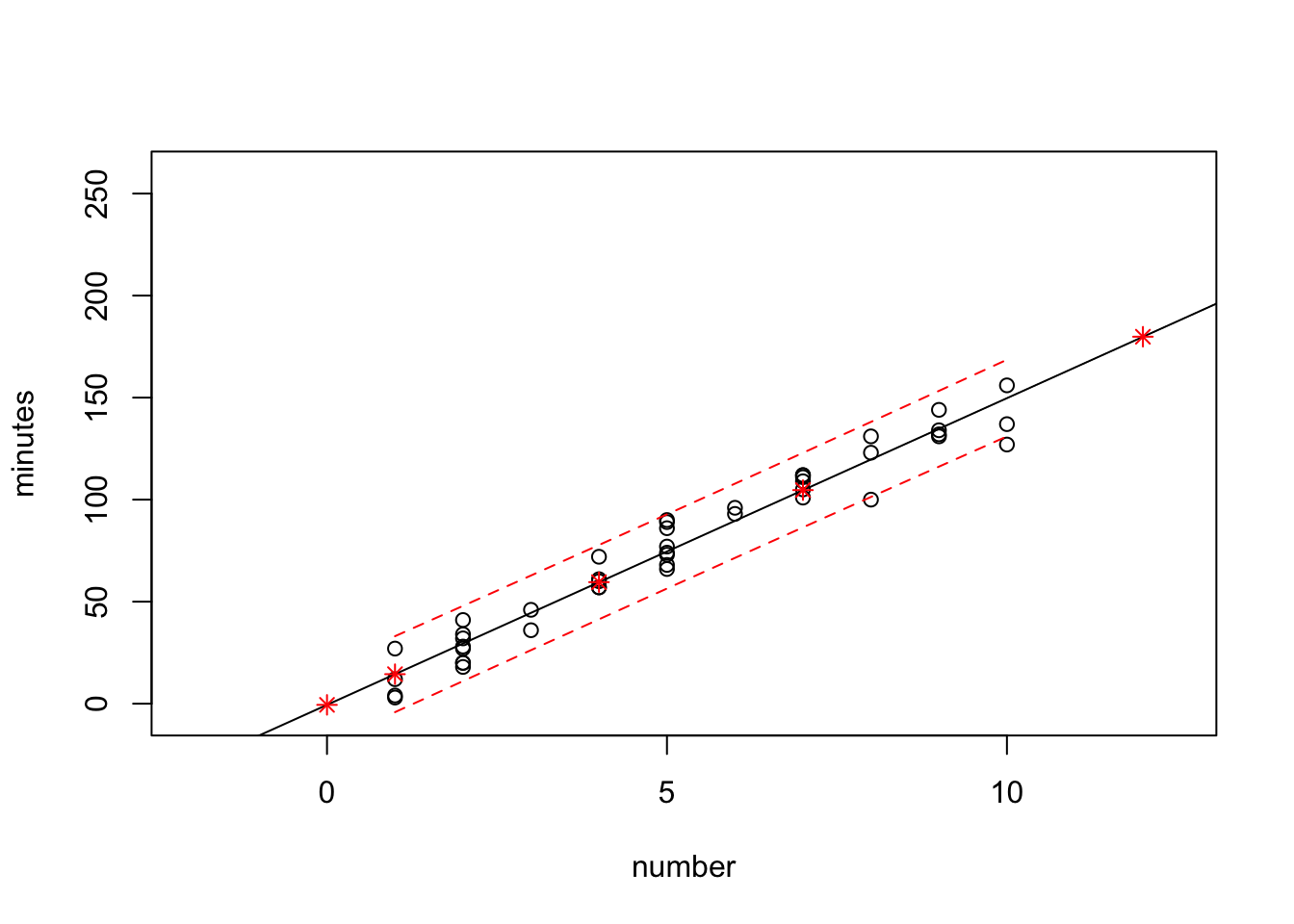

lines(sort(data0120$number), sort(pred.band[,3]),col="red",lty=2)

Use ggplot2

ggplot(data0120) +
  geom_point(aes(x=number, y=minutes)) +
  geom_smooth(method=lm, se=TRUE, aes(x=number, y=minutes)) +
  geom_point(data=new.number.pred, aes(x=number, y=fit), col="red", shape=8, size=2) +
  geom_line(data=new.number.pred, aes(x=number, y=lwr), col="red", linetype="dashed") +

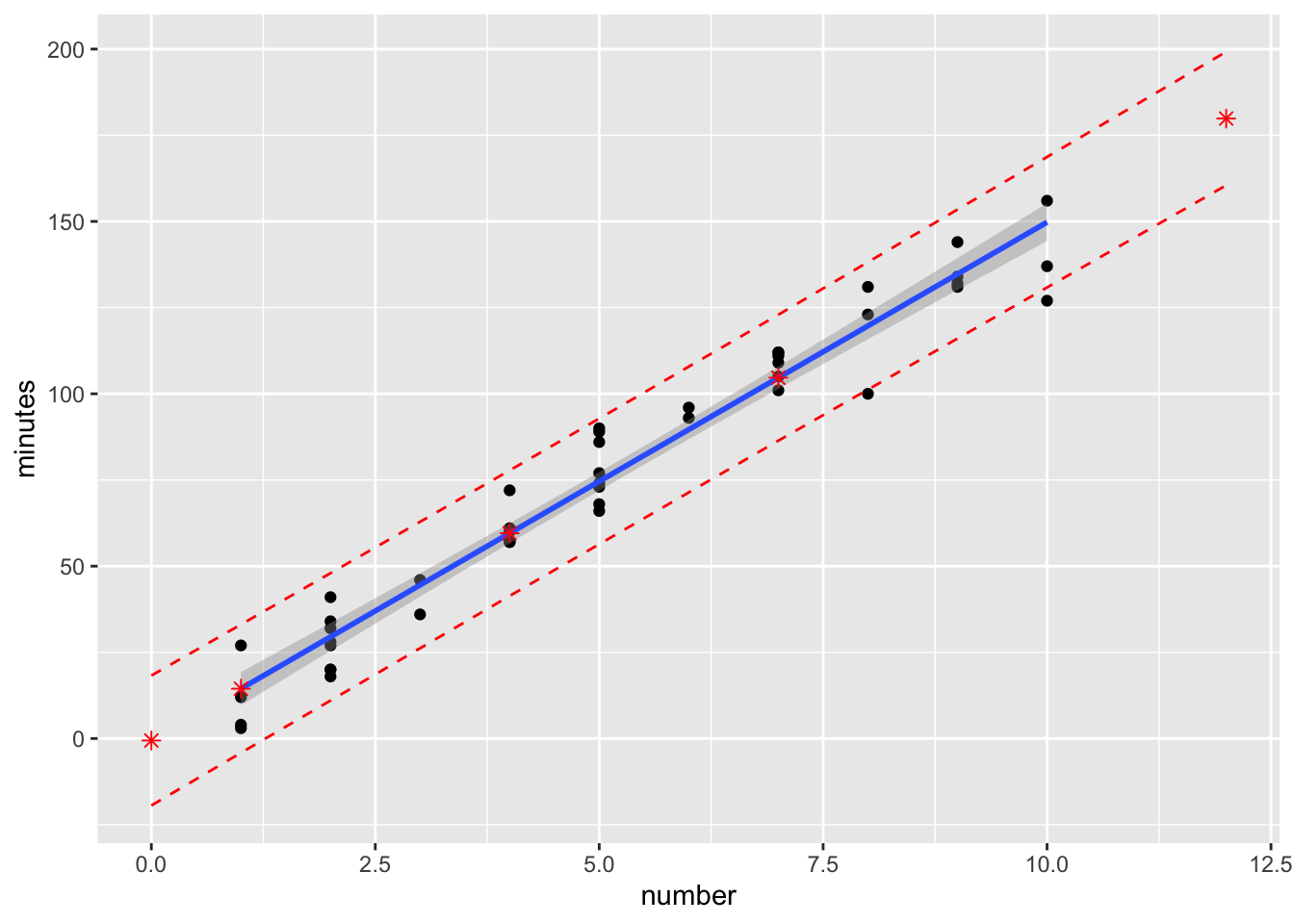

  geom_line(data=new.number.pred, aes(x=number, y=upr), col="red", linetype="dashed")

Use the ggplot, it will automatically cover the new data point.

5. Descriptive Measures of Linear Association between \(X\) and \(Y\), that is \(R^2\) and \(r\)

5.a. Options to Quantify the Size of \(Y_i-\hat{Y_i}\)

Residual standard error is an estimate of the standard deviation of \(\epsilon\), \(\sqrt{MSE}\). It tells the amount of the variation that a fitted regression line fails to account for. However, it depends on the scale of the \(Y\)s. See the following example.

Example 1. Minutes and number of copiers (data0120).
summary(fit)

Call:
lm(formula = minutes ~ number, data = data0120)

Residuals:
     Min       1Q   Median       3Q      Max
-22.7723  -3.7371   0.3334   6.3334  15.4039

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  -0.5802     2.8039  -0.207    0.837
number       15.0352     0.4831  31.123   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 8.914 on 43 degrees of freedom
Multiple R-squared:  0.9575,    Adjusted R-squared:  0.9565
F-statistic: 968.7 on 1 and 43 DF,  p-value: < 2.2e-16

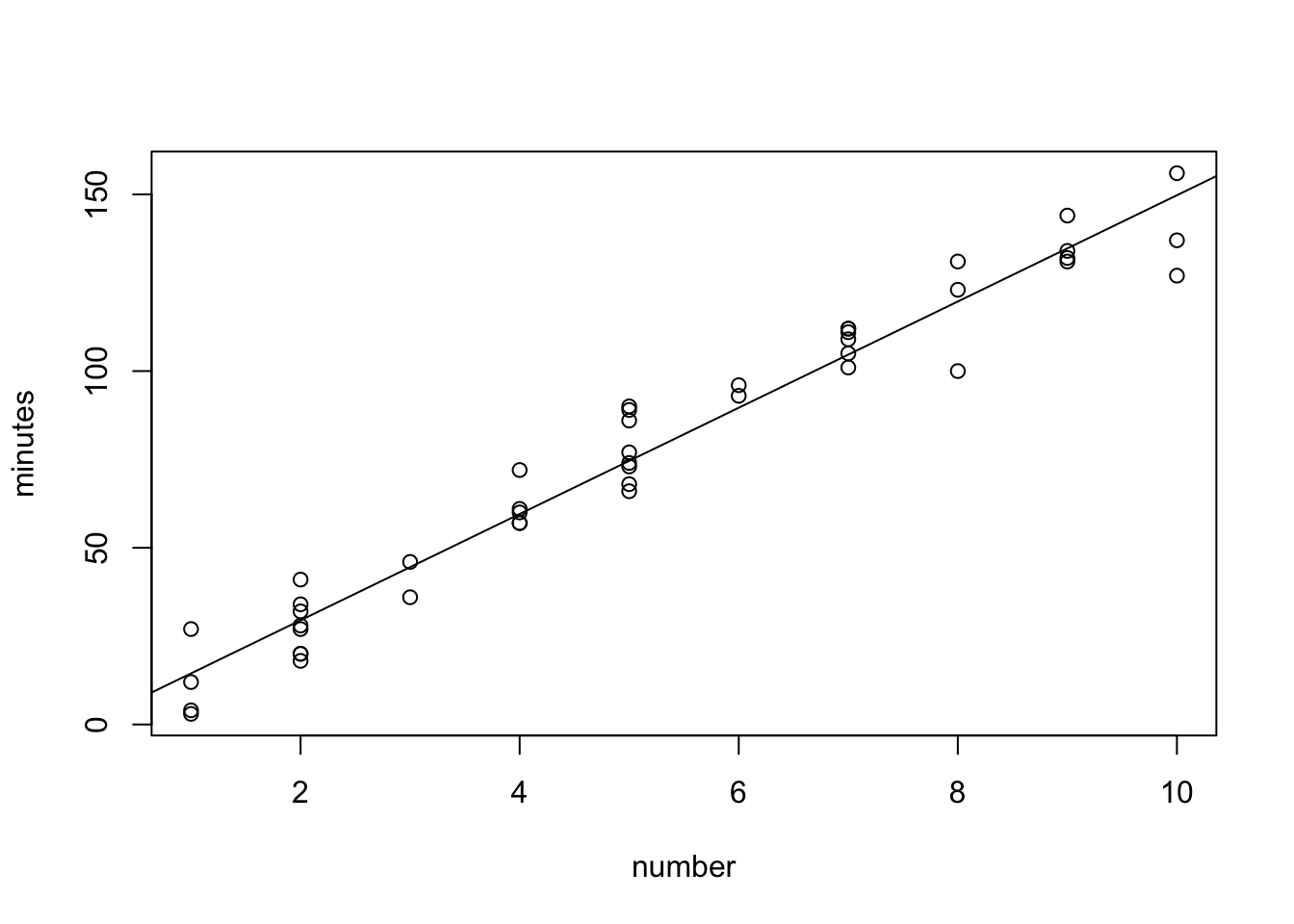

plot(minutes~number,data=data0120)
abline(fit)

Example 2. First year college GPA and ACT score (data0119).
data0119=read.table("http://www.stat.ufl.edu/~rrandles/sta4210/Rclassnotes/data/textdatasets/KutnerData/Chapter%20%201%20Data%20Sets/CH01PR19.txt")
colnames(data0119)=c("Y","X")
fit2=lm(Y~X,data=data0119)
summary(fit2)

Call:
lm(formula = Y ~ X, data = data0119)

Residuals:
     Min       1Q   Median       3Q      Max
-2.74004 -0.33827  0.04062  0.44064  1.22737

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  2.11405    0.32089   6.588  1.3e-09 ***
X            0.03883    0.01277   3.040  0.00292 **
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 0.6231 on 118 degrees of freedom
Multiple R-squared:  0.07262,   Adjusted R-squared:  0.06476
F-statistic:  9.24 on 1 and 118 DF,  p-value: 0.002917

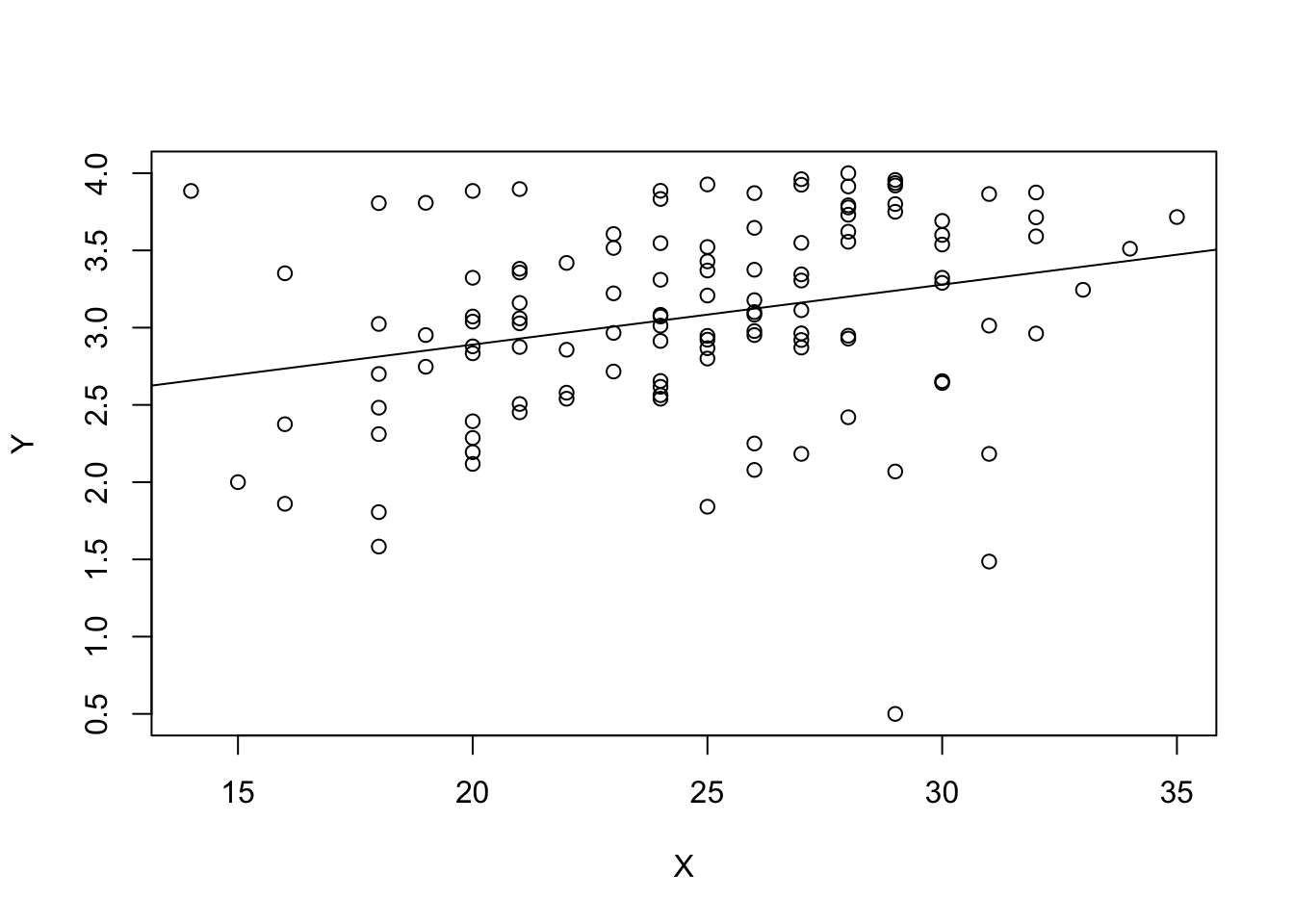

plot(Y~X,data=data0119)
abline(fit2)

Look at the two graphs and residual standard errors. Which example seems to have a more clear linear association? Which example has a smaller residual standard error?

Example 1: Residual standard error: 8.914 on 43 degrees of freedom.

Example 2: Residual standard error: 0.6231 on 118 degrees of freedom.

Explanation: The scales of the response variable are different.

5.b. We Seek a Descriptive measures of How Well the Fitted Model Explains the Observed Response.

  • \[R^2=\frac{SSR}{SST}=1-\frac{SSE}{SST}\]
  • \(R^2\) is the proportion of total variation in the response that is explained by the model.
  • \[0\leq R^2 \leq 1\]
  • \(R^2\) is not an estimate of any parameter, but rather a descriptive number about the goodness of fit of a model.
  • An \(R^2\) value of 1 implies a perfect fit of the observed data to the line. That is, all the points fall perfectly on a line.
  • An \(R^2\) value of 0 does not imply there’s no relationship, just that there’s no linear relationship. There could be nonlinear relationship. Plot your data to avoid this misinterpretation.
  • \(R^2\) does not tell us the directiion of the relationship (whether it’s positive or negative)

sessionInfo()
R version 3.6.1 (2019-07-05)
Platform: x86_64-apple-darwin15.6.0 (64-bit)
Running under: macOS Mojave 10.14.6

Matrix products: default
BLAS:   /Library/Frameworks/R.framework/Versions/3.6/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/3.6/Resources/lib/libRlapack.dylib

locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] ggplot2_3.2.1

loaded via a namespace (and not attached):
 [1] Rcpp_1.0.2       knitr_1.24       whisker_0.3-2    magrittr_1.5
 [5] workflowr_1.4.0  tidyselect_0.2.5 munsell_0.5.0    colorspace_1.4-1
 [9] R6_2.4.0         rlang_0.4.0      dplyr_0.8.3      stringr_1.4.0
[13] tools_3.6.1      grid_3.6.1       gtable_0.3.0     xfun_0.9
[17] withr_2.1.2      git2r_0.26.1     htmltools_0.3.6  assertthat_0.2.1
[21] yaml_2.2.0       lazyeval_0.2.2   rprojroot_1.3-2  digest_0.6.20
[25] tibble_2.1.3     crayon_1.3.4     purrr_0.3.2      fs_1.3.1
[29] glue_1.3.1       evaluate_0.14    rmarkdown_1.15   labeling_0.3
[33] stringi_1.4.3    pillar_1.4.2     compiler_3.6.1   scales_1.0.0
[37] backports_1.1.4  pkgconfig_2.0.2
